Description

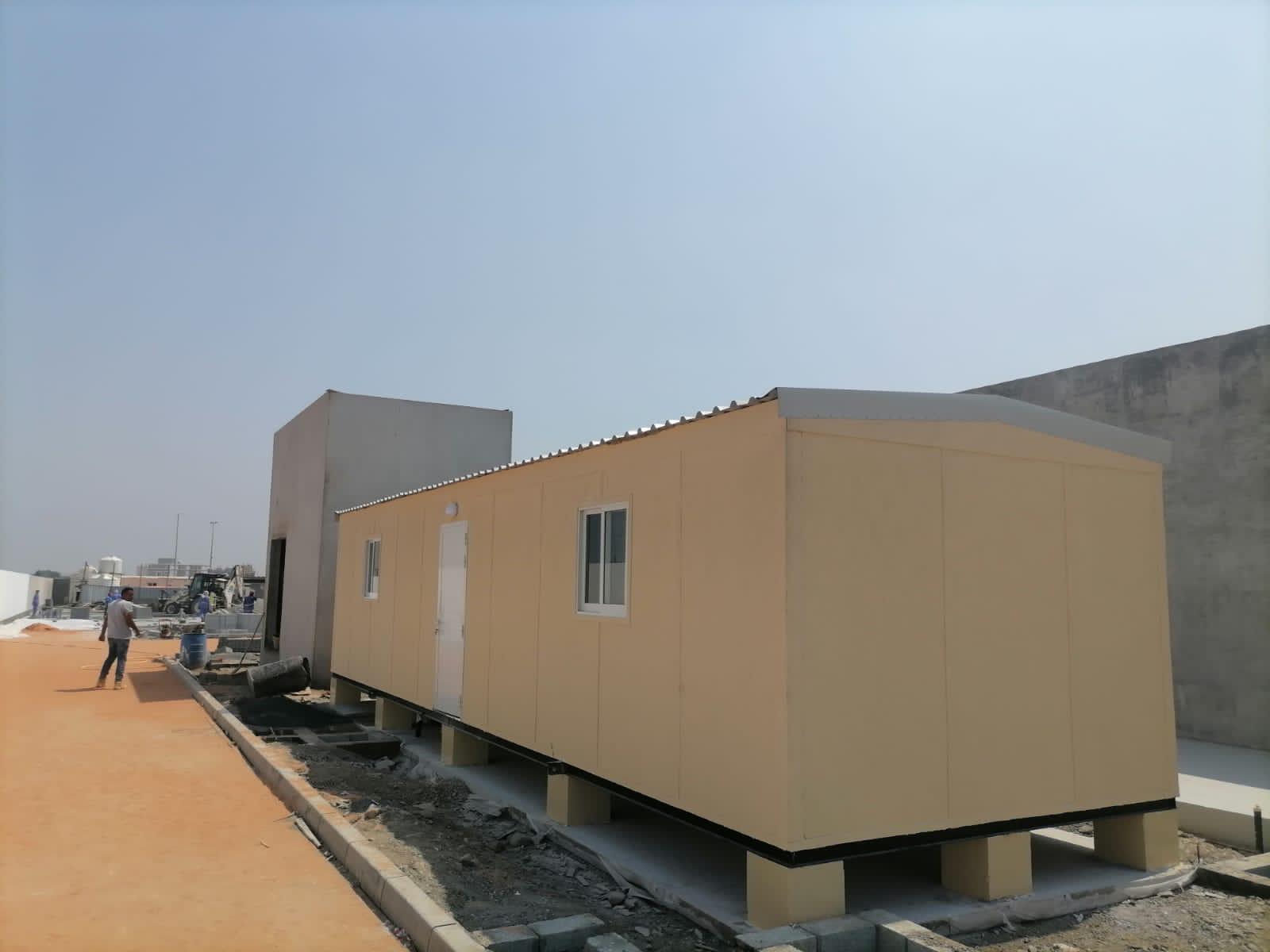

This fire rated prefab open hall portacabin is a versatile

multipurpose unit designed to serve a wide range of

temporary and semi-permanent applications.

The open hall layout makes it ideal for:

• Meeting rooms

• Site offices

• Dining halls

• Storage units

• Multipurpose project spaces

Manufactured using Light Gauge Steel (LGS) / Cold Formed Steel

Framing System (CFSF) with insulated sandwich panels, the unit

offers excellent fire resistance, durability, and thermal

performance suitable for UAE climate conditions.

This prefab portacabin is factory-built and delivered ready

for installation, allowing fast deployment on construction

sites and industrial projects.

Key Specifications:

• Fire rated prefab structure

• Open hall internal layout

• LGS / CFSF steel framing system

• High-quality insulated wall and roof panels

• Suitable for office, dining, and storage use

Exclusions:

• Pantry not included

• Bathroom not included

• Foundation, crane offloading, and external connections

are excluded unless agreed separately

TECHNICAL SPECIFICATIONS OF FIRE RATED PREFABRICATED BUILDINGS (COLD FORMED STEEL FRAMING SYSTEM)
1	BASE SKID	1.1	Civil Works- Foundation 400x400x400mm (high) will be provided by the client as per the approved design. Steps will be provided by the client for entrance/ Exit areas. Closing under the cabin excluded
		1.2	Base skid: The steel base skid shall be constructed from IPEAA 120X64 MS I Beam, as full perimeter beams and cross members as per design.
		1.3	Lifting eyes are provided at intermediate points along the perimeter beams
		1.4	Anti-corrosive: Perimeter beams shall be coated with one coat of red oxide primer and painted with two coats of Alkyd-based enamel paint. (Brand: RAK Paints or eqv.)
2	FLOOR & FINISHES	2,1	Floor Frame: C89x38x0.6mm LGS Joists fixed to the base skid as per design
		2.2	Floor Decking: One Layer of 18mm thick Cement fibreboard (non-combustible) fixed to floor frame as per drawing.
		2.3	Floor finish in Dry Area: Supply and installation of 1.5mm PVC on 18mm thick cement fibre board floor.
			50mm high PVC skirting shall be provided. Color: off-white/ brown
			Floor finish in Wet Area: 1.5mm thick PVC vinyl sheet (Colour: Beige) fixed on 18mm thick cement fibreboard floor and wet area floor joints heat welded for better waterproofing. Brand: Wonderfloor – India or Eqv.

3	WALL FRAMING & FINISHES	3.1	Wall Framing: Cold-formed steel profile framing-roll forming machine C89x38x0.6mm Wall Insulation: 50mm thick Glass wool insulation with 12 Kg/m3 density.
		3.2	External Cladding: 6mm thick cement fibreboard finished with Medium Textured emulsion paint in an off-white colour. (Brand: RAK Paints or eqv.) External wall joints shall be covered by 6mm thick CFB joint strips.
		3.3	Internal Cladding: Dry Area: 12mm thick gypsum board, fixed to cold-formed steel wall framing. Joints shall be covered with 6mm thick Cement fibre board Joint strips. Wet area: 6mm thick cement fibre board (non-combustible) fixed to cold-formed steel wall framing. Joints shall be covered with 6mm thick Cement fibre board Joint strips.
		3.4	Internal Finishing Dry Area: emulsion paint (off-white color) applied to gypsum board. (Brand: RAK Paints or eqv.). Wet area: Enamel paint (white color) applied to cement fiber board. (Brand: RAK Paints or eqv.).
4	ROOF	4.1	Roof Covering: Single skin GI, Polyester coated 0.40mm thick profile sheets shall be fixed on GI Stud purlins as per drawing. Roof sheet Colour: RAL 9002 Roof overhangs/parapet/Gutter/fascia/Downpipes are not considered in our offer.
4	ROOF	4.2	Trusses: Trusses are from cold-formed steel sections -roll forming machine C89x38x0.6mm
5	CEILING	5.1	Ceiling: 12mm thick gypsum board, finished with fine texture, good quality white color interior paint. (Brand: RAK Paints or eqv.). Ceiling Joints shall be covered by 6mm thick CFB joint strips. Ceiling clear height shall be approx. 2.35m
6	DOORS	6.1	Entrance Door with Accessories: aluminum door frame with or without glass, as per choice, handle, and lock case shall be provided as per shown in drawing. Door color: white Single Door Size: 900mmx 2100mm / Double Door Size: 1800mmx 2100mm
		6.2	Internal Doors / Toilet Doors: Flat single flush doors with paper honeycomb core and PVC laminated finish. Door Colour: White Internal Room Doors: 900x2100mm & Toilet Doors: 700x2100mm
		6.3	Internal Door Accessories: Door Lock system: Mortice lockset with cylinder and SS door handles shall be provided for all internal doors and Single cylinder with thumb turn latch shall be provided for internal toilet doors. Brand: “Godrej” or Eqv.
7	WINDOWS	7.1	External Windows: Powder coated aluminium frame (Non thermal break), with 6mm thick clear glass. (Single glazing),One Sliding one fixed window. Window Frame color: RAL 9010. Window Size: 900mm x 900mm
7	WINDOWS	7.2	Exhaust Window: Fixed window with Aluminium framing and 6mm thick obscure glass as per drawing. Window Frame colour: RAL 9010.
8	ELECTRICAL	8.1	Electrical supply is single-phase 230V, 50Hz/60Hz as per design.
		8.2	Electrical Final Distribution board (Consumer unit) shall be provided with 63Amp 2P 100mA ELCB Incomer and SP MCB’s outgoings as per design Brand: Hager or eqv. MD, SUMDB power cabling up to Internal FDB are not included in our offer.
		8.3	Concealed PVC conduits shall be provided for wiring. Brand: Deco duct or eq.
		8.4	PVC insulated Copper wires from NCI or eq.
		8.5	Light Fixtures: • 1x 40W LED Panel Surface mounted Light fittings for Office Rooms. Brand: MILANO or eq.(subject as per drawing) • 1X20W LED Light fittings batten type for dry area. Brand: VETO INNOVA – UAE or eq. • 1X9W (W/P) LED bulkhead light for all external doors. Brand: EMKAY-VETO or eq
		8.6	Switch / sockets 13A single/twin shall be provided as per BS standard design. Brand: Edison or eq. (White Range)
		8.7	Provision for water heater shall be provided only for pantry. Supply & installation of water heater shall be done by client.
9	HVAC	9.1	Split AC provision: Power outlets (32A 3P PVC isolator wired with 1 C 6 Sqmm + ECC) for Split AC units. Brand – Milano or eqv. Supply and Installation of Air conditioning units are not considered in our offer.
9	HVAC	9.2	Exhaust fans are provided as shown in drawing. (6″dia window mounted cord operator type). Brand: Milano or eq.
10	PLUMBING	10.1	PPR pipes shall be used for the hot water and cold-water distribution and Sewage lines are UPVC pipes.
		10.2	Sanitary wares: Wash hand basins Full Pedestal type shall be provided. EWC with ablution hose (shattaf) shall be provided as per drawings. White Range. Milano or equ.
		10.3	Sanitary fittings: Wash basin Mixers provided from Brand: Milano or Eqv. Toilet Accessories: Mirror (size: 60x40cm), Toilet paper holder, coat hook, shall be provided as per requirements. Brand: Milano or Eqv. Kitchen Sink: mixer and stainless steel sink (Single bowl) with 2 doors aluminum storage cabinet . Countertop excluded.
11	TELE / DATA CONTAINMENTS ONLY	12.1	PVC conduits shall be provided for Tele/Data point as per drawing. Block wiring, Networking, sockets, junction boxes and system installation shall be done by others.

EXCLUSIONS: TO BE PROVIDED BY CLIENT:
1	Site Work:	Foundation, Scaffolding, Ground leveling, backfilling, landscape, paving, Soil testing, De-watering, Demolition & Cleaning of Existing structure or Debris, Entrance steps & skirting below caravan.
1	Site Work:
2	Site entry:	Entry permits (CICPA/CNIA – Security Permits) for our trailers, workers & Equipment’s and Site must be accessible for normal road trailers.
3	Lifting:	Crane + lifting tools
4	Furniture:	Wardrobes, cabinets & other furniture, etc.
5	Accessories:	Window blinds, Canopies, etc..
6	Structural:	Design calculation, All third-party inspections, and tests
7	Electrical:	All external Electrical connections, Cables, SUMDB & related wiring, MDB & related wiring, Data & Telephone, Earthing system, IT works, CCTV, External lighting, External Power Socket, HVAC, Cooking Utensils,
7	Electrical:	Generator, any authority approvals.
8	Plumbing:	Embedded Drainage, External Connections, Manholes, Storage Tanks, Pump.
9	Mechanical:	Fire Fighting & Fire alarm Systems, etc.
9	Approvals:	Civil defense, Municipality, and all other permits.

Additional information

Weight	6000 kg
Dimensions	1200 × 360 × 260 cm
Usage	Site Offices, Meeting Room, Accommodation, Store, Dining
Unit Type	Site Offices, Meeting Room, Accommodation, Store, Dining
Number of Rooms	1 Rooms, Open Hall
Toilet / Pantry	No Toilet I No Pantry
Window Size (cm)	90 x 90 cm Qty 2
Fire Rating	Fire Rated
Structure System	LGS 89 X 38 X 0.6 mm (Light Gauge Steel)
Wall Insulation	Glass Wool 12 KG/M3
Wall Thickness	107 mm I 113 mm
Roof Type	PPGI Polyester Coated Sheet + Insulation + Aluminum Foil
Floor Type	Cement Board + Vinyl
Electrical	Included I Plug and Play Cabin
Delivery Condition	EX Factory I Factory Built I Ready to Install
Customization	Available on Request
Starting price shown is for reference only. Final price depends on the selected size (m)	12×3.6 m, 10×3.6 m, 9×3.6 m, 8×3.6 m, 6×3.6 m
